What is a lateral load

What are lateral loads in structure?

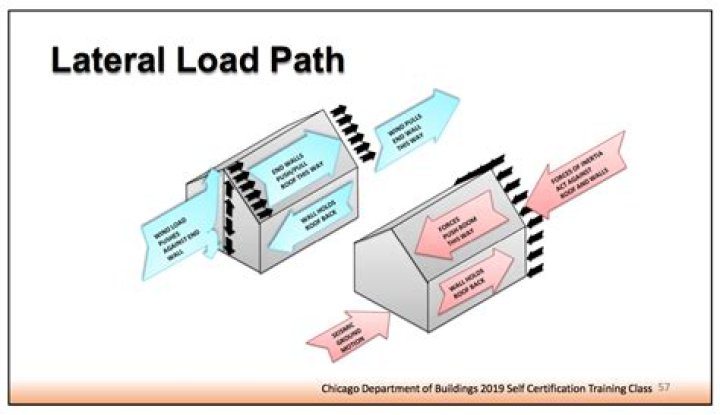

Lateral loads are live loads that are applied parallel to the ground; that is, they are horizontal forces acting on a structure. They are different to gravity loads for example which are vertical, downward forces. The most common types are: Wind load.

What is lateral load on beam?

In beam loading problems lateral refers to the part of the load that is not directed along the length (i.e. axis) of the beam while, axial refers to the load which is directed along the axis of the beam. The lateral load can be horizontal, vertical, or somewhere in-between.

What is gravity load and lateral load?

Unlike gravity loads, which act in a downward direction, lateral loads can act in a horizontal direction or even cause an uplift effect. A shear wall is a compilation of smaller structural elements into one larger element that is used to resist lateral loads.

How do you calculate the lateral load of a building?

Notortiona loads are calculated by considering half the height above the floor and below the floor of floor to floor height. All the deceased loads that fall into this area are considered for calculation. 1.5% of the weight is applied as a horizontal force on that particular floor.

What is lateral construction?

Lateral Construction means construction of conduit to connect the City System to a City Public Facility, if such a connection does not exist as of the Effective Date.

Is snow a lateral load?

Other vertical loads that are taken into account when I design a structure are the ones caused by the elements, snow and rain loads. … The lateral loads that are applied to structures include wind, seismic and earth loads. These loads act in the direction perpendicular to the buildings wall and roof systems.

What is an example of a lateral load?

Typical lateral loads would be a wind load against a facade, an earthquake, the earth pressure against a beach front retaining wall or the earth pressure against a basement wall. Most lateral loads vary in intensity depending on the building’s geographic location, structural materials, height and shape.

What are deceased loads in construction?

Definition of deceased load

: a constant load in a structure (such as a bridge, building, or machine) that is due to the weight of the members, the supported structure, and permanent attachments or accessories.

Is earthquake load lateral?

Earthquake loads acting on the structure are distributed proportionally to lateral load-bearing wooden walls. Open- ings that cause losses in stiffness adversely affect the seismic behaviour of the structure.

Is 875 a standard?

This Standard gives wind forces and their effects (static and dynamic) that should be taken into account while designing buildings, structures and components thereof. This Code provides information on wind effects for buildings and structures, and their components.

What is longitudinal load?

Longitudinal Load Transfer. When a car is accelerating or braking, a reaction force is generated similar to the centrifugal force generated when cornering. This reaction force is “WAx”. The longitudinal acceleration is in g force again similar to the lateral load transfer.

What are gravity loads?

Gravity loads include “dead”, or permanent, load, which is the weight of the structure, including its walls, floors, finishes, and mechanical systems, and “live”, or temporary load, which is the weight of a structure’s contents and occupants, including the weight of snow.

Which load combination is not possible?

12. Which of the following load combination is not possible? Explanation: According to IS code, it is assumed that maximum wind load and earthquake load will not occur simultaneously on a structure.

Is 875 deceased load?

Dead loads are due to self weight of the structure. deceased loads are the permanent loads which are always present. … The unit weight of commonly used building materials are given in the code IS 875 (part-I)-1987. The unit weights of important building materials are given in Table 1.11.

IS 875 1987 is used for?

IS: 875-1987(Part-4)- Snow Loads: This standard deals with the snow loads on roofs of buildings. Roofs should be designed for the actual snow load due to snow or for the imposed loads specified in Part 2 Imposed Loads.

Is 800 a combination load?

a) deceased load + imposed load, b) deceased load + imposed load + wind or earthquake load, c) deceased load + wind or earthquake load, and d) deceased load+ erection load. The effect of wind load and earthquake loads shall not be considered to act simultaneously. The load combinations are outlined in detail in Cl. 3.5 of IS 800:2007.

Which of the following is not true regarding longitudinal stiffeners?

Which of the following is not true regarding longitudinal stiffeners? Explanation: Longitudinal stiffeners are also called horizontal stiffeners. They increase buckling resistance considerably as compared to transverse stiffeners when the web is subjected to buckling.

Is 800 suggests that the purlins are designed as?

Explanation: Purlins can be designed simple, continuous or cantilever beams. If purlins are assumed to be simply supported, the moments will be wl²/8. If they are assumed to be continuous, the moments will be slightly less and taken as wl2/10. IS 800 recommends the purlins to be designed as continuous beams.
