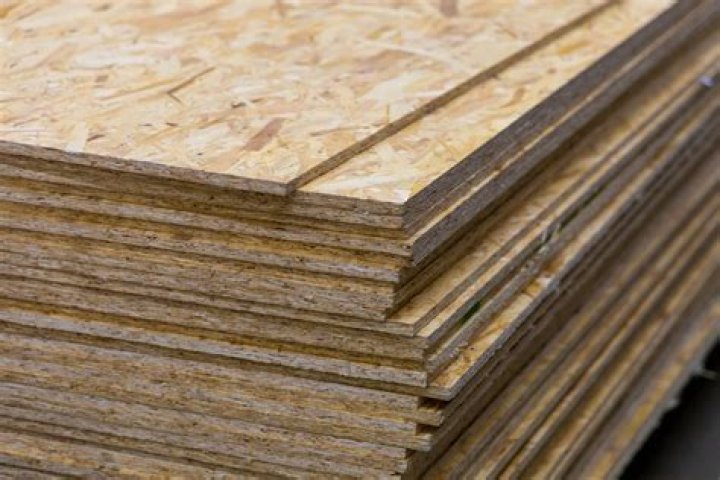

Does it matter which side of osb faces

What side of OSB should be painted?

Hi all. the smooth side. smooth side would be nice in terms of wash down.

Which way is OSB stronger?

parallel If you look carefully at the sheet of OSB in question, you’ll see that most of the fibers are oriented parallel with the length of the sheet, making that the strongest axis in bending.

How do you lay OSB boards?

What are the lines on OSB?

OSB has its advantages. Some panels have a textured surface, which makes them less slippery when used for roof sheathing. OSB panels often have lines at 16- and 24-in. intervals so you know where underlying studs, rafters and joists are for nailing.

Do you nail or screw OSB board?

Tools for Hanging OSB

A hammer and 8d nails are standard for installing OSB, but you can speed up the installation by using a nail gun. … If the force of the nail gun is too strong, the head of the nail can penetrate the OSB, which reduces the nail’s holding power.

Which side of CDX plywood faces out?

The “C” graded side is the face side, used where it is more visible, and the “D” graded side is the reverse side, usually mounted in a way that hides it.
…
Softwood Plywood Grading System.

Grade	Description
C plugged	As its name implies, the splits and defects have been plugged.

• May 19, 2011

Should sheathing be vertical or horizontal?

On roofs and floors, sheathing is installed perpendicular to supports because this is the orientation that results in the strongest roof or floor. Wind loads perpendicular to a wall are similar to floor and roof loads, and installing sheathing horizontally makes walls better at resisting wind pressure.

What is stronger OSB or plywood?

OSB and plywood offer similar (and sufficient) performance in terms of strength and functionality, though plywood is about 7% stronger. … Plywood will absorb moisture quicker than OSB, but consequently it will also dry quicker.

Is it better to use OSB or plywood for subfloor?

The National Tile Contractors Association and the Resilient Floor Covering Institute both recommend plywood for subflooring and underlayment, because it doesn’t have the risk of swollen edges that OSB does. Plywood also has a slight advantage in stiffness, which means that subflooring panels need not be quite as thick.

Should OSB sheathing be installed vertically or horizontally?

If the height of a wall is less than 8-feet, install the plywood (or OSB) vertically. If the height of a wall is greater then 8-feet, install the plywood (or OSB) horizontally.

Is OSB board directional?

OSB board is an alternative product to traditional plywood. OSB stands for Oriented Strand Board, and is composed of pieces of wood oriented in the same direction. The compression of wood pieces that were cut along the direction of the wood fiber give OSB its formidable strength.

Can OSB sheathing be installed horizontally?

When installing walls, the strength axis can run either vertically or horizontally to supports.” We can reason on this too. Most 4×8 OSB panels have nailing lines running both directions on the panel, and 4×9 and larger only have them running parallel with the long edge.

Does sheathing have to end on a stud?

Align the edge of the sheathing sheet with the outer corner of the framed wall. Correct placement of the sheathing is when the edge of the sheet lines up perfectly with the outer wall, and the other end of the sheet is on the center of a stud.

Should sheathing be staggered?

Most installations are Category 1, but the critical criteria in all categories is that the panels MUST fully meet (lap) the sill plate, both top plates and 1/2 of stud at ends. (Please stagger nailing into studs where the panels end, to avoid splitting of stud.)

Does it matter which way you lay plywood?

Dry-setting is important. It is exceedingly important that the first whole line of plywood sheets be perfectly straight and square. Each subsequent piece of plywood will depend on the first piece being installed correctly. If you do this properly, you’ll have a beautiful plywood subfloor.

Should sheathing cover the rim joist?

The wall sheathing should extend below the rim joist, which is inset on this house to allow for a continuous band of insulation. The wall sheathing below dictates the overhang.

How do you sheath a wall with OSB?

Is blocking required for wall sheathing?

So any sheathing edges that don’t land on standard framing (studs, plates, windows/doors) need to be supported by blocking. All edges of wall sheathing must be supported by and nailed to framing. This edge didn’t land on plates, so install blocking to support it.
